Wednesday, August 27, 2008
60-inch Telescope in 3D
Tuesday, August 26, 2008
60-inch Aluminizing - the Conclusion
The tank is then sealed and vacuum pumps are engaged to pump the air out.
In Procedures in Applied Optics John Strong (1988), the guy who invented the process of vacuum deposition of aluminum onto telescope mirrors, describes the glow discharge as an "old but still useful method" that essentially further cleans the mirror surface of any organic residues "which may also positively influence the film structure" (i.e. the aluminum coating).
Here is the view looking into the aluminizing tank during one of the three glow discharges. The mirror is on the left, the plasma is produced at the bright spot in the upper right.
When the process is concluded you (hopefully) end up with a mirror looking like this:
Saturday, August 23, 2008
Two Up Coming Events on Palomar
On Saturday, August 30th the Palomar Mountain Volunteer Fire Department (PMVFD) will hold it annual fundraising barbecue. Several members of the observatory staff volunteer their time to help protect the Palomar community. The PMVFD and other fire agencies helped protect the observatory from the large fires that hit Palomar last fall (see photo below).
Click on the image below to learn more about the event. You can help support the PMVFD even if you can't make it to Palomar Mountain to attend the event. This is their one and only fundraising event for the year. You can help keep the PMVFD thriving.
August 30th is also the 60th anniversary of the first day of issue of the Palomar Observatory U.S. postage stamp.
To help commemorate the anniversary of the stamp the Palomar Mountain Station Post Office will be using a special postmark that day. I'll there with the current postmaster and a former Palomar postmaster who was here back when the 200-inch mirror arrived. The event will be from noon - 1:00 pm. For more information contact the Palomar Mountain Post Office at 760 742-3044.
Keep on Truckin'
If you make a visit to the observatory you'll likely notice that our picnic area is named for former employee Gus Weber. I have been told that Gus planted many of the now tall trees on the observatory grounds. Apparently Gus also liked to drive his pickup truck through the big back door and park it inside the dome of the 200-inch telescope. Observatory superintendent Byron Hill had had enough of that and decided one day to teach him a lesson. While Gus was off working Hill had his truck lifted to the top of the dome. According to The Perfect Machine by Ronald Florence:
Weber, suspecting a practical joke, search the mountain before he came into the dome and saw the visitors staring up above the telescope. His barrage of swearing was another treat for the visitors.
Speaking of trucks. Here's another old photo for you.

I'll be presenting some of the observatory's history and new research to the Riverside Astronomical Society in two weeks.
By the way, I haven't forgotten about finishing up the story of the re-aluminumizing of our 60-inch mirror. I just need to catch up on my photography.
Friday, August 22, 2008
60-inch Aluminizing, part III
Continuing from part II . . . .

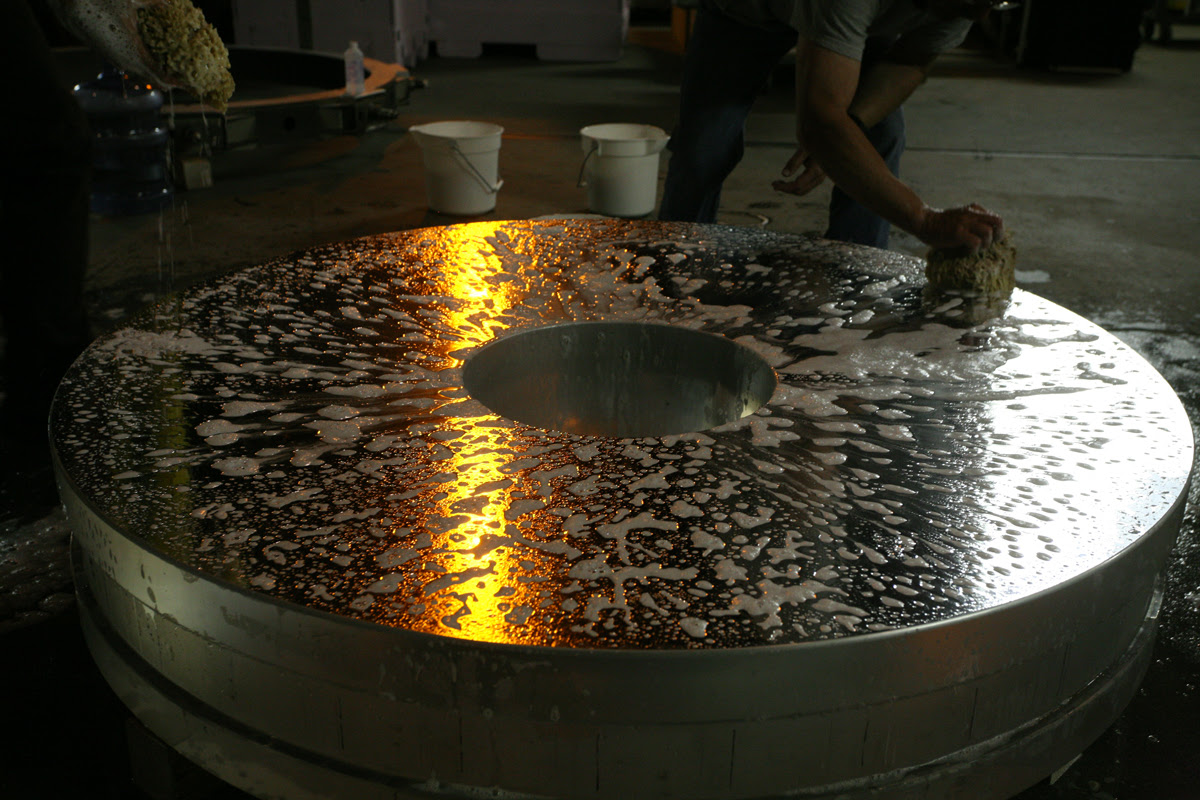

The mirror is rinsed and then soaped. For washing the mirror we use sea sponges that have been treated to remove any particles that may be embedded in the sponges. Sponges are dipped into buckets of soapy water and then squeezed out over the mirror as shown in the photo below.
The mirror is then rinsed again . . .
and then re-washed. This time the soapy sponges are lightly brought into contact with the surface of the mirror.
After additional rinsing and an evaluation of the surface reflectivity (improved almost 10% at this point), it is time to remove the old layer of aluminum from the mirror. It is treated with a solution (a mix of Copper Sulfate & Hydrochloric Acid) we call "Green River" that dissolves the aluminum from the disc, taking it from this . . . .
to this . . . .

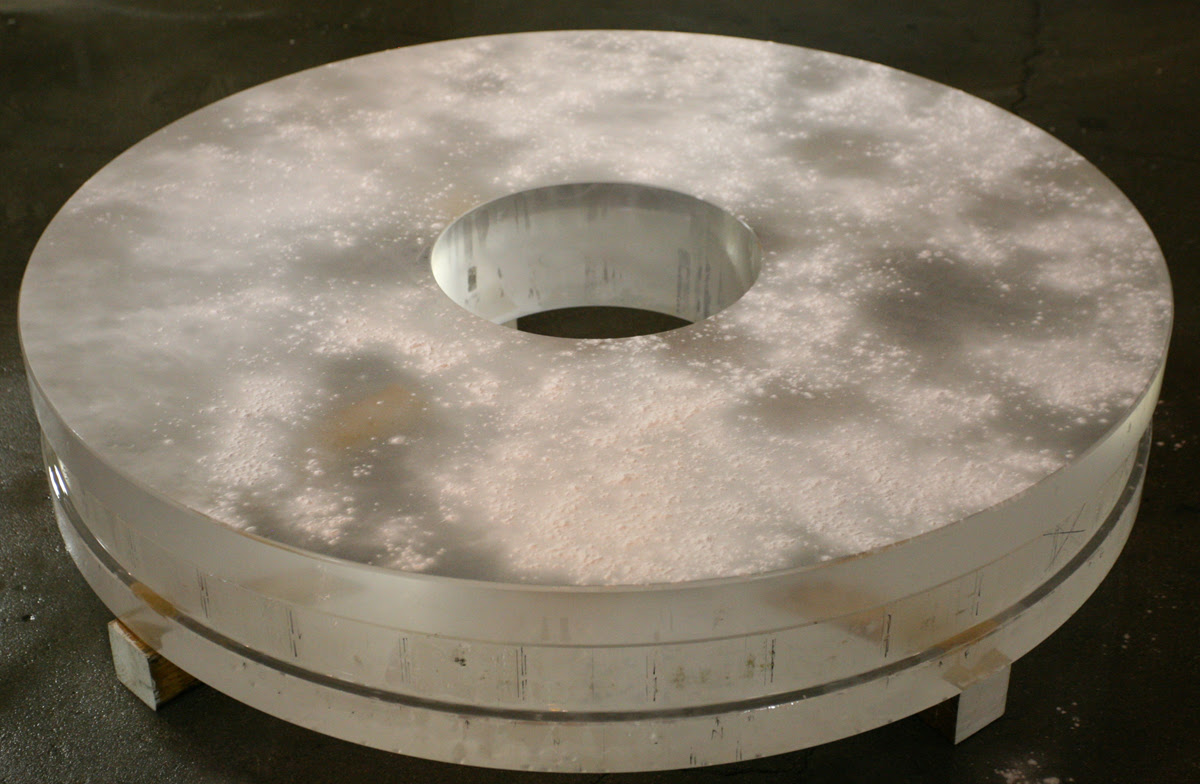

The mirror is then given a dusting of Calcium Carbonate . . .
and washed with Potassium Hydroxide and then distilled water.
The mirror is then dried with an industrial paper towel that leaves no particles behind.
To give the mirror its new coating of aluminum it must be carefully lifted . . . .
and placed into the aluminizing chamber.
In case you can't tell, the mirror is hanging on the left side of the image, with the important parts of the aluminizing chamber in the section on the right. I'll describe the process of aluminizing in the next post, part IV.
The mirror is rinsed and then soaped. For washing the mirror we use sea sponges that have been treated to remove any particles that may be embedded in the sponges. Sponges are dipped into buckets of soapy water and then squeezed out over the mirror as shown in the photo below.
After additional rinsing and an evaluation of the surface reflectivity (improved almost 10% at this point), it is time to remove the old layer of aluminum from the mirror. It is treated with a solution (a mix of Copper Sulfate & Hydrochloric Acid) we call "Green River" that dissolves the aluminum from the disc, taking it from this . . . .
The mirror is then dried with an industrial paper towel that leaves no particles behind.
To give the mirror its new coating of aluminum it must be carefully lifted . . . .
Labels:
aluminizing,
palomar 60-inch telescope
Wednesday, August 20, 2008
60-inch Aluminizing, part II
First the reflectivity of the mirror's old coating is tested.
Tuesday, August 19, 2008
60-inch Aluminizing
This week we are re-aluminizing the mirror for our 60-inch telescope. As you'll see below telescope mirrors can get dirty over time. Even with a weekly spraying of CO2 to remove dust, it is eventually time to give them a good washing, strip off the old coating of aluminum and apply a new one.
The process began early yesterday morning with the removal of the science instrument and other components of the telescope. The telescope has a light baffle directly over the primary mirror which needs to be removed before the mirror can be taken out. Members of the staff have to carefully work inside the telescope tube to remove the baffle.

Here's a view from inside the telescope (taken from between the primary and secondary mirrors) looking down at the primary mirror.

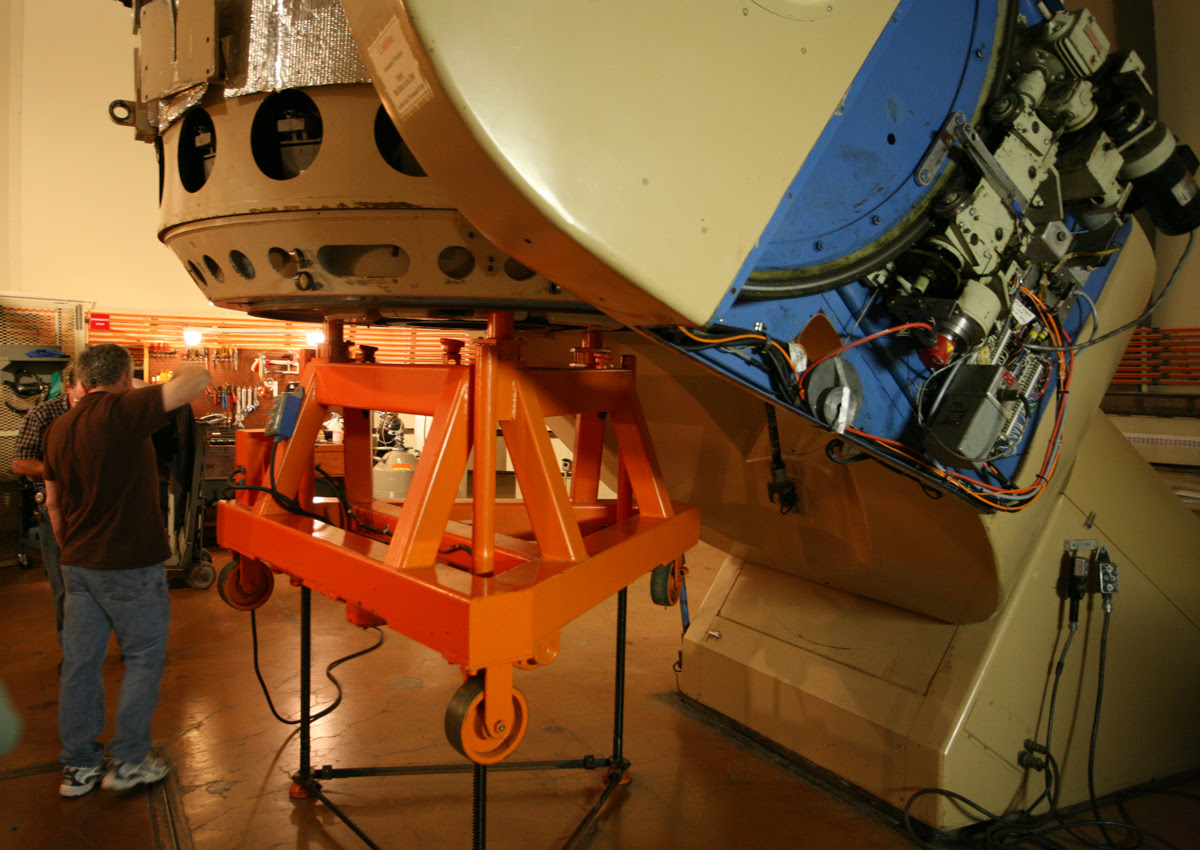

The telescope is then brought into the vertical position and locked into place. A cart, made just for this purpose, is moved into position and raised to the back end of the telescope.

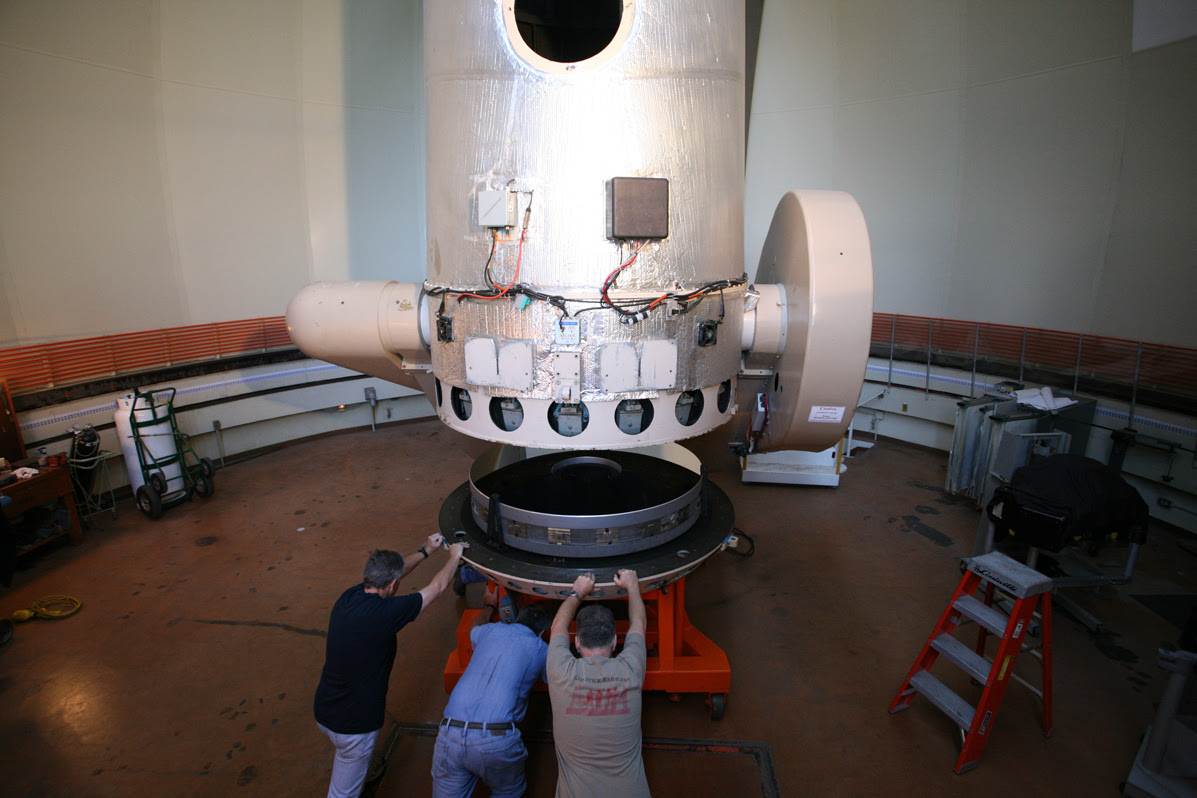

The mirror is then unbolted from the telescope and the cart, with its precious cargo, is then carefully lowered.
Here is the mirror, safely removed from the telescope and the mirror cell. As you can see it is time to clean it up.

The rest of the process takes place in the dome of 200-inch telescope. In the next post I'll cover transportation, washing, stripping and re-coating the mirror.
The process began early yesterday morning with the removal of the science instrument and other components of the telescope. The telescope has a light baffle directly over the primary mirror which needs to be removed before the mirror can be taken out. Members of the staff have to carefully work inside the telescope tube to remove the baffle.
Here's a view from inside the telescope (taken from between the primary and secondary mirrors) looking down at the primary mirror.
The rest of the process takes place in the dome of 200-inch telescope. In the next post I'll cover transportation, washing, stripping and re-coating the mirror.
Labels:
aluminizing,
palomar 60-inch telescope
The Difference Engine
The good folks over at the High Performance Wireless Research and Education Network do some cool stuff with the images that come out of the Hale Telescope's webcam. They grab and archive an image every three minutes and produce time-lapse animations from them. An interesting twist on the Hale Telescope webcam is the differential image that is produced by subtracting the newest image from the previous one. Sometimes the results are pretty cool looking.
Here's a webcam shot taken in morning twilight from Monday. The differenced image is below. From that you can tell the the telescope is slowly tracking across the sky & that the mirror cover closed.
Saturday, August 16, 2008
The Journey to Palomar
The trailer for The Journey to Palomar, to be broadcast on PBS on November 10, is available below. Check out the trailer and mark the date on your calendar. You'll be glad you did.
Return to Palomar
A few months ago I had the pleasure of meeting Robert Gandolfi and his wife Bobbi. Back in 1968-69 Robert was here on Palomar, working for Western Gear Corporation, working on the construction of the dome and Oscar Mayer Building that houses our 60-inch telescope.
That's Robert on the right in this photo with the uncompleted dome behind him. Robert had some great stories and photos to share about his experiences from that time. What I didn't realize until his visit was that his work had finished before the telescope was installed and he had never actually seen it. I was happy to show him the telescope as it is today and explain the research that it is being used for. Here is Robert in his return to Palomar, nearly 40 years after his last visit.
I am glad that he was able to finally see the telescope and the fruits of his labors all those years ago.
By the way, in the coming week the 60-inch telescope will have its mirror pulled to be re-aluminized. I'll be posting photos of pieces and parts while explaining the process.
By the way, in the coming week the 60-inch telescope will have its mirror pulled to be re-aluminized. I'll be posting photos of pieces and parts while explaining the process.
Thursday, August 14, 2008
Return of Laser-Guide Star
This week saw the return of the laser guide-star program to Palomar. In case you missed it I described the program in an earlier post to this blog.
Our laser is back after some work that was done to it back at its birthplace, the University of Chicago. A new laser-launch telescope was also installed and operated for the first time this week.
Three nights engineering time was granted to the laser guide-star team. Engineering time is basically time to work on and improve the performance of the system. The team was very happy with the performance of the system this week and further science operations will take place as scheduled.
Below are a few photos that I took Tuesday night through Wednesday morning this week. As always, you can click on the image for a higher-resolution view.
The view from outside the dome with the laser pointed at Zenith. The setting moon is just out of view to the right, but it provides illumination for some high cirrus clouds.
Here is the interior view with the laser pointed at zenith. The laser is located in the old coude room, it is reflected up the side of the telescope to prime focus. There the beam encounters the laser-launch telescope which broadens the beam and sends it skyward.
Here is the view with the telescope pointed west of zenith.
I was stationed inside the dome where I took over 300 images for the purpose of putting together a time-lapse movie. The laser was operating at 7.5 Watts and eye protection is required at all times.
I was set up right next to the Hale Telescope's webcam which managed to catch me in the act of making an adjustment to my camera. The safety goggles look great, don't they?
Below is the time lapse-movie from this week. You can also view it as a higher resolution Quicktime movie here.
Our laser is back after some work that was done to it back at its birthplace, the University of Chicago. A new laser-launch telescope was also installed and operated for the first time this week.
Three nights engineering time was granted to the laser guide-star team. Engineering time is basically time to work on and improve the performance of the system. The team was very happy with the performance of the system this week and further science operations will take place as scheduled.
Below are a few photos that I took Tuesday night through Wednesday morning this week. As always, you can click on the image for a higher-resolution view.
I was stationed inside the dome where I took over 300 images for the purpose of putting together a time-lapse movie. The laser was operating at 7.5 Watts and eye protection is required at all times.
Below is the time lapse-movie from this week. You can also view it as a higher resolution Quicktime movie here.
Labels:
Adaptive Optics,
Hale Telescope,
laser-guide star
Tuesday, August 12, 2008
The Great Planet Debate
It has been two years and the controversy has not gone away. It is manifesting itself this week in the form of The Great Planet Debate. Astronomers Mark Sykes, director of the Planetary Science Institute, and Neil deGrasse Tyson, director of the American Museum of Natural History, will square off on Thursday, August 14 from 1:30 to 2:45 p.m. (PDT) in a debate that will be carried live over the Internet. To watch the event you must register online in advance.
Sykes is proposing that our solar system has 13 planets (Mercury, Venus, Earth, Mars, Ceres, Jupiter, Saturn, Uranus, Neptune, Pluto, Charon, Eris, and Makemake), while Tyson, as you might imagine has a different idea (just 8 planets like the IAU put forward). No matter which side of the debate you come in on, this is an interesting time where people can see how the scientific process moves along and how new discoveries can make us re-think our ideas.
Labels:
dwarf planets,
Eris,
Kuiper Belt,
Pluto,
plutoids
Under Palomar Skies
Under crystal-clear Palomar Skies the Friends of Palomar Observatory held its first star party for its membership last Saturday night. Here are a few shots from the evening.
This one is looking south towards the dome of the 200-inch telescope and the summer Milky Way. While the professionals were observing supernova remnants the small crowd gathered for the star party saw the Moon, Jupiter, a passage of the International Space Station, the Ring Nebula, numerous star clusters, the Whirlpool Galaxy, and more all thanks to the observatory docents who ran the show.
Here is the view to the north with the Big Dipper just above the sky glow caused by the lights of Riverside, Orange and Los Angeles Counties.
This last shot is time-lapse showing an observatory docent and a staff member playing with a light-up frisbee. A good time was had by all.
Tuesday, August 5, 2008
Palomar on the Web
Wired Magazine's This Day in Tech today profiles an important part of Palomar history--the discovery of the first quasar (3C273) and yesterday Centauri Dreams' Larry Klaes wrote a nice piece called Two Telescopic Anniversaries. Be sure to check them out.
There haven't been too many blog posts here on Palomar Skies lately as I have been doing a lot of traveling. Don't worry the posts should be picking up again next week.
There haven't been too many blog posts here on Palomar Skies lately as I have been doing a lot of traveling. Don't worry the posts should be picking up again next week.
Friday, August 1, 2008
Palomar in the News
Palomar Observatory has been in the news recently.
Last week the Wall Street Journal did a story on light pollution. The article is a good summary of what is known and going on in light pollution lately. The observatory got some nice coverage including this great quote:
Also, some of the software used on the Hale Telescope's adaptive optics system recently was named co-winner as NASA's 2007 Software of the Year Award. Winning was Jet Propulsion Laboratory’s Adaptive Modified Gerchberg-Saxton Phase Retrieval program, which analyzes data from a telescope's science camera to detect possible errors that limit its imaging performance.
Finally, the Palomar Transient Factory, set to debut this fall, got a mention in this article on data storage for NASA applications. The article mentions the Hale Telescope, but didn't get things quite right. The Palomar Transient Factory will use the 48-inch Samuel Oschin Telescope to hunt for unknown or variable objects. Data will be analyzed in real time with follow-up observations performed on the Palomar 60-inch telescope and others, including the Hale. A better description can be found here. From the article
Last week the Wall Street Journal did a story on light pollution. The article is a good summary of what is known and going on in light pollution lately. The observatory got some nice coverage including this great quote:
"We convert that starlight into knowledge," says Dan McKenna, superintendent of the Palomar ObservatoryOn the subject of light pollution, the Pauma tribe is poised to make a major expansion to their casino. Thankfully, they have been working with their neighbors, including the observatory. They will follow San Diego County's light pollution ordinance and have agreed to other terms to lessen the impact on the area. Read about it in this story from the San Diego Union Tribune.
Also, some of the software used on the Hale Telescope's adaptive optics system recently was named co-winner as NASA's 2007 Software of the Year Award. Winning was Jet Propulsion Laboratory’s Adaptive Modified Gerchberg-Saxton Phase Retrieval program, which analyzes data from a telescope's science camera to detect possible errors that limit its imaging performance.
Finally, the Palomar Transient Factory, set to debut this fall, got a mention in this article on data storage for NASA applications. The article mentions the Hale Telescope, but didn't get things quite right. The Palomar Transient Factory will use the 48-inch Samuel Oschin Telescope to hunt for unknown or variable objects. Data will be analyzed in real time with follow-up observations performed on the Palomar 60-inch telescope and others, including the Hale. A better description can be found here. From the article
NASA's IPAC (Infrared Processing and Analysis Center) is setting up a 4-year Palomar Transient Factory (PTF) project which will capture night sky images from the Oschin 48-inch telescope at Palomar in an attempt to detect and follow supernova events by registering changes in their spectroscopic data over time. This will involve something like 30,000 images of up to 30million astronomic objects per night (on clear nights), meaning around 40GB of data every 24 hours. The project team estimates there could be 42 billion images stored over the life of the project.
